Foundation Construction in Lahore 2026 Complete Homeowner Guide

A house may look impressive above ground, but its long-term performance begins below it. The foundation carries the building load and transfers it to the soil. When the foundation is planned around actual ground conditions, constructed according to structural drawings and checked at each stage, it provides a stable base for the walls, columns, floors and roof.

Foundation construction Lahore requires site-specific judgment. Ground conditions can vary from one locality and plot to another, particularly where land has been filled, previously cultivated, exposed to drainage problems or developed after extensive earthwork. For that reason, Foundation Construction Lahore copying the foundation of a nearby house is not a reliable design method. The correct approach is to coordinate the architectural plan, structural loads, soil information and site drainage before excavation begins.

This guide explains the practical sequence a homeowner should expect, Foundation Construction Lahore the decisions that require engineering input and the inspections that should be completed before work is concealed.

Begin With a Site and Soil Assessment

The first technical question is not how much concrete to order; it is whether the ground can support the proposed house safely. A qualified engineer should review the plot, building configuration, neighbouring structures, visible drainage conditions and any evidence of uncontrolled fill or previous excavation.

Soil investigation

The scope of soil investigation depends on the project and site risk. It may range from engineering inspection and test pits to formal geotechnical testing. The objective is to understand bearing conditions, soil layers, moisture, fill depth and any condition that may influence settlement or excavation safety.

Setting out and levels

Before digging, the building grid, plot boundaries and reference levels should be established from approved drawings. Column locations, Foundation Construction Lahore wall lines, foundation widths and finished floor levels must agree with the architectural and structural plans. A small setting-out error at this stage can affect rooms, setbacks and services later.

Common Foundation Systems for Houses

The foundation type should be selected by the structural designer, Foundation Construction Lahore not by price alone. The following systems are common concepts, but their dimensions and reinforcement must be project-specific.

Foundation Construction Process

Excavation and formation level

Excavation should follow the approved layout and reach the required founding level without unnecessarily disturbing the soil. Loose material, standing water and softened soil must be addressed before the next layer is placed. Excavation sides should remain safe and should not undermine adjoining property or boundary walls.

Ground preparation and compaction

Where filling is required, Foundation Construction Lahore approved material should be placed in controlled layers and compacted with suitable equipment. Dumping a thick layer and compacting only the surface can leave weak zones below. Field checks should confirm that levels and compaction meet the project requirements.

Lean concrete or blinding

A thin, clean base may be placed beneath structural concrete where specified. It provides a level working surface, separates reinforcement from soil and helps workers maintain dimensions and concrete cover.

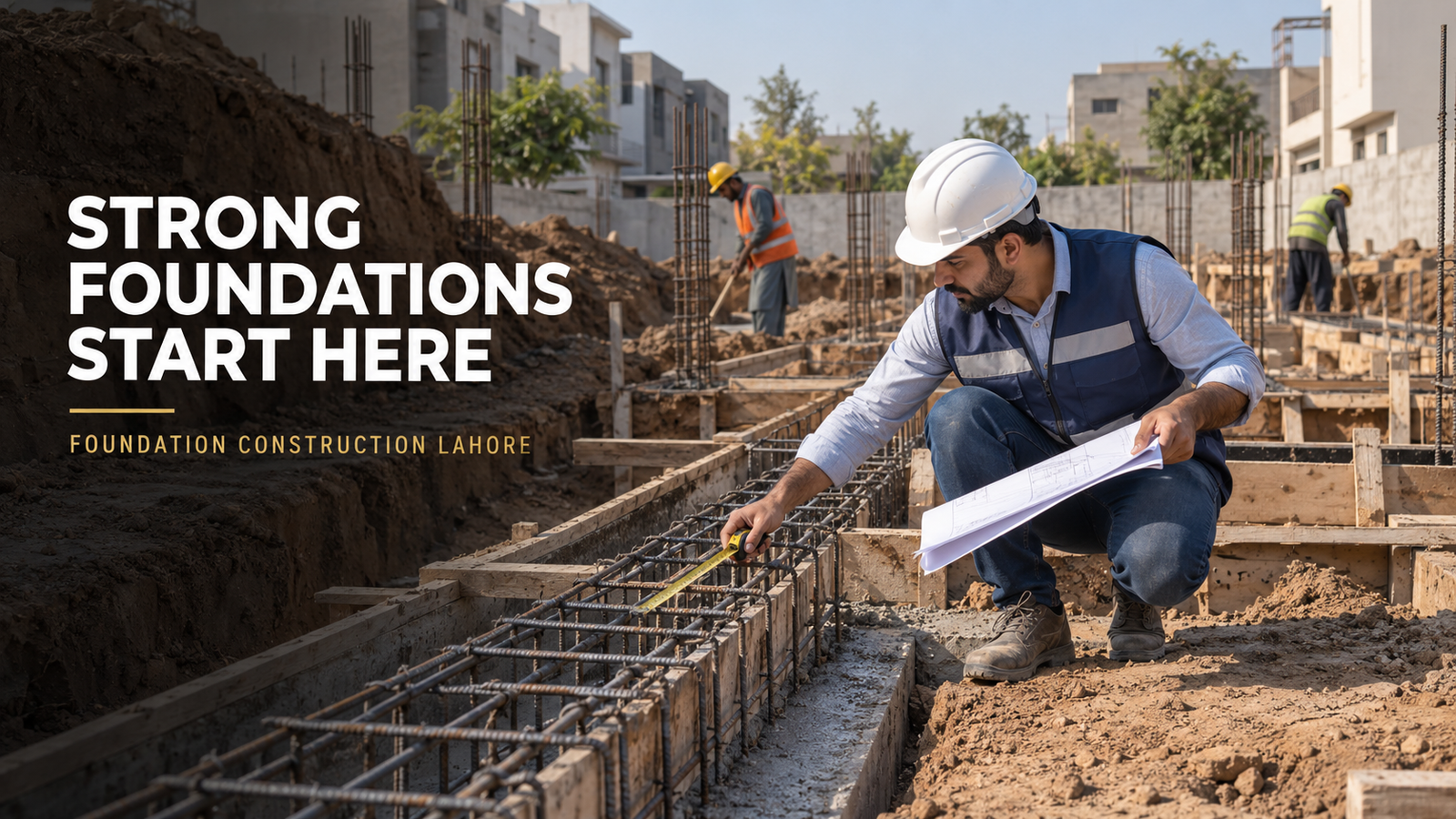

Reinforcement and formwork

Steel diameter, spacing, laps, anchorage and connections must match the structural drawings. Reinforcement should be tied securely and supported on suitable cover blocks. Bricks, Foundation Construction Lahore timber pieces and loose stones are not substitutes for approved cover blocks. Formwork should be aligned, braced and sufficiently tight to retain concrete.

Service coordination

Drainage, water, electrical earthing and other underground routes should be coordinated before concrete is poured or backfilling begins. Unplanned cutting through completed foundation elements can weaken the work and create leakage paths.

Concrete placement and curing

Concrete should meet the specified grade and be placed without segregation or uncontrolled addition of water. Proper vibration removes trapped air, Foundation Construction Lahore while planned construction joints protect continuity. Curing must begin at the appropriate time and continue according to the specification and weather conditions.

Foundation masonry, waterproofing and backfilling

Where foundation walls or masonry are included, line, level and bonding should be checked. Damp-proofing, waterproofing and drainage details should be completed before they become inaccessible. Backfill should be suitable, Foundation Construction Lahore placed in layers and compacted without damaging the structure or services.

Lahore-Specific Risks to Plan For

Variable or filled ground

Plots developed on filled ground may experience uneven movement if the fill was not placed and compacted properly. The engineer should establish whether the proposed founding level reaches suitable material or whether a different solution is needed.

Rainwater and site drainage

Heavy rainfall can collect in open excavations, soften exposed soil and interrupt concrete work. Temporary drainage, safe dewatering and protection of prepared formation should be planned. Permanent surface drainage should direct water away from the completed building.

Neighbouring structures and narrow plots

Excavation close to an existing house or boundary requires careful sequencing and, Foundation Construction Lahore where necessary, temporary support. A contractor should not deepen or widen an excavation near adjoining foundations without engineering review.

Termite and moisture protection

Where specified, Foundation Construction Lahore termite treatment and damp-proofing should be coordinated with foundation and floor construction. The selected system must be applied by competent personnel and protected from damage during subsequent work.

Quality-Control Checklist Before Concrete

Approved structural drawings are available at the site and match the latest architectural layout.

Plot lines, grid lines, column centres, footing dimensions and foundation levels have been verified.

The founding surface is firm, clean and free from loose soil, debris and standing water.

Reinforcement size, quantity, spacing, laps, anchorage and cleanliness match the drawings.

Cover blocks are stable and provide the specified concrete cover.

Formwork is aligned, adequately braced and sealed against grout loss.

Underground services, sleeves, drainage routes and earthing requirements are coordinated.

Concrete grade, quantity, delivery sequence, access, vibration equipment and curing arrangements are confirmed.

The responsible engineer has inspected the work before approval to pour.

Common Foundation Construction Mistakes

Starting without coordinated drawings: Architectural and structural information must agree before setting out and excavation.

Using uncontrolled filling material: Unknown or unsuitable material can retain moisture, compact poorly and contribute to settlement.

Changing reinforcement on site: Reducing bar size, spacing or laps without the designer’s approval can compromise structural performance.

Pouring on muddy or disturbed soil: The founding surface should be inspected and corrected before it is concealed by concrete.

Adding excessive water to concrete: Uncontrolled water addition can reduce strength and increase cracking and permeability.

Ignoring curing: Concrete requires moisture and time to develop its intended properties; curing should never be treated as optional.

Backfilling too quickly or carelessly: Poorly compacted backfill and damage to waterproofing or services can create later defects.

Choosing a Foundation Contractor in Lahore

A low quotation is not enough evidence of capability. Ask who will supervise the structural work, how material quantities will be controlled, Foundation Construction Lahore how inspections will be recorded and how deviations from drawings will be handled. The contractor should be willing to coordinate with the structural engineer and provide a clear sequence of work.

Request examples of completed residential foundation projects and speak with previous clients where possible.

Obtain a written scope covering excavation, disposal, filling, compaction, reinforcement, concrete, curing, waterproofing and backfilling.

Confirm whether material testing, survey work, water removal and specialist treatments are included or separately priced.

Use written approvals for changes in depth, dimensions, concrete grade, reinforcement or construction method.

Maintain delivery records, inspection photographs, test reports and concrete pour details for future reference.

How Long Does Foundation Construction Take?

There is no reliable single duration for every Lahore house. The programme depends on plot size, number of storeys, foundation system, excavation depth, soil conditions, neighbouring buildings, weather, labour, inspections and concrete supply. A simple project may progress quickly, while weak ground, deep excavation or a raft foundation may require substantially more time.Foundation Construction Lahore  the contractor should provide a stage-by-stage schedule after the drawings and site conditions are understood.

Conclusion

Good foundation construction is not defined by concrete volume alone. It is the result of site investigation, coordinated design, accurate setting out, controlled earthwork, correctly placed reinforcement, suitable concrete, proper curing and documented inspection. For homeowners planning foundation construction in Lahore, the safest approach is to make engineering decisions before work starts and to inspect every stage before it is covered.
